Outrigger Beam System

1000 & 1500 Series

1500 Series:

  • Provide reaches of up to 8′.
  • Cable Truss systems can offer up to 13.5’.
  • Overhangs can also be accommodated using this fully engineered and tested system.
  • Light 9’ lengths are easy to carry and pin together at site helping simplify work.
  • Each front, back and mid beam section weighs only 47 Lbs.

1000 Series:

  • Provide reaches of up to 5′.
  • Cable Truss systems can offer up to 14’.
  • Overhangs can also be accommodated using this fully engineered and tested system.
  • Light 8’ lengths are easy to carry and pin together at site helping simplify work.
  • Each front, back and mid beam section weighs only 32 Lbs.

Increase your safety: The tubular beam cross-section is more resistant to lateral deflection and twist than comparable “I-Beam” sections.

Great value:  Modular outrigger beams cost about the same as making your own out of aluminum I-beams.

Simplicity – The standard internal splice joins the sections together quickly and easily using tethered connector pins – no splice plates, no nuts and bolts, no wrenches, and no lost parts. Easy to carry and easy to handle in corridors and elevators.

Available Series
Beam System - 1000 Series
Beam System - 1500 Series
1000 Series 1500 Series
8ft. Reach 12ft. Reach 14ft. Reach 9ft. Reach 13.5ft. Reach

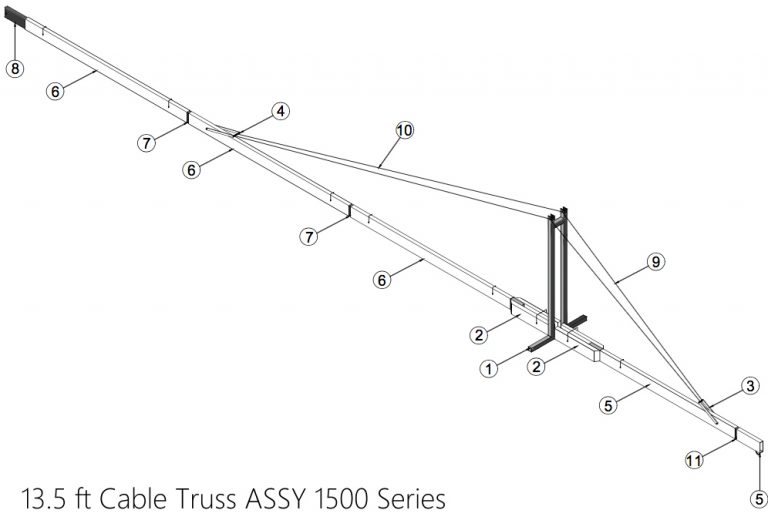

8ft. Cable Truss Assembly 12ft. Cable Truss Assembly 14 ft. Cable Truss Assembly 9 ft. Cable Truss Assembly 13.5 ft. Cable Truss Assembly
8ft. Front Beam Inner Fork Beam Sections Forked Front Beam Section 9ft. Front Beam Inner Forked Beam Section
8ft. Mid Beam 8ft. Front Beam 8ft. Mid Beams 9ft. Mid Beam 9ft. Front Beams
30” Beam Splice 8ft. Mid Beams 30” Beam Splices 32” Beam Splices 9 ft. Mid Beams
8 ft. Rear Beam 30” Beam Splices Counterweight Holder Rear Counterweight Receiver 32” Beam Splices
Counterweight Holders 8ft. Rear Beam Counterweight Holder Rear Counterweight Receiver
Counterweight Holders Counterweight Holders

Operating Instructions for Modular Beams & Accessories

Operating Instructions for 1500 Series Modular Beams & Accessories
