| Single Line | Dual Line | |
| Lift Capacity: | 1,000lbs | 2,000lbs |
| Lift Speed: | 80fpm | 40fpm |
| Lift Height: | 400’ | 200’ |
| A/C Power: | 220V, 3PH | 220V, 3PH |
| Horsepower: | 3.3HP | 3.3HP |
| Mounting Options: | Scaff-Trac, Trestle Monorail, I-Beam Trolley and Fixed I-Beam | Scaff-Trac, Trestle Monorail, I-Beam Trolley and Fixed I-Beam |
| Controller Type: | External Pendant | External Pendant |
| Dual Control: | Optional | Optional |
| Wireless Control: | Optional | Optional |
| Unit Weight: | 165lbs | 165lbs |
LEO-HOIST-30-220V-XXL-VOLTMETER-2ND-110V-PENDANT-CONTROL-1
PENDANT-CONTROL-GOOD

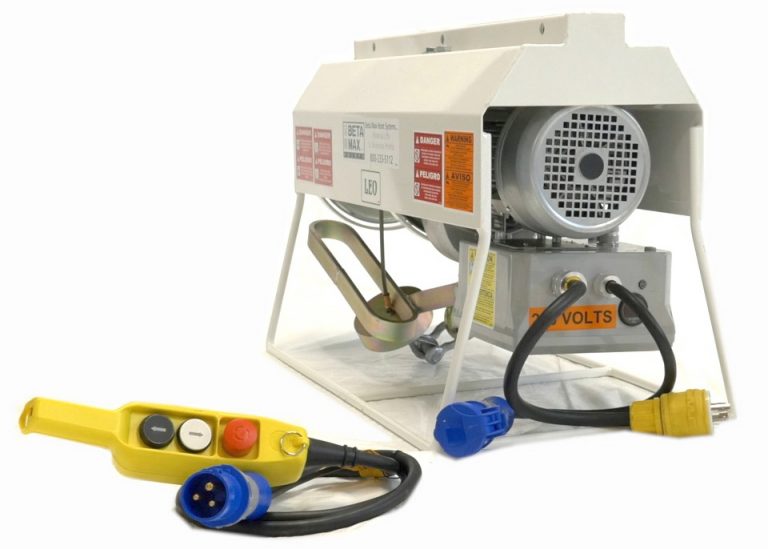

LEO XXL
Single Line: 1000lb | 220V | 400ft • Dual Line: 2000lb | 220V | 200ft
The Leo XXL wire rope hoist provides 400ft of lift height and is ideal for urban metropolitan projects. Safely and efficiently lift 1,000lbs at 80fpm and watch your productivity soar. Got a heavier load? Quickly switch to a double line setup and lift up to 2,000lbs.
- Hoist of choice metropolitan areas.
- Long lasting performance with minimum maintenance required
- Flexible I-Beam Mounting Option works with and configures to each to each unique jobsite
Available Models
Specifications Sheet
Portable Hoist Manual
