| Single Line | Dual Line | |
|---|---|---|
| Lift Capacity: | 600lbs | 1,200lbs |
| Lift Speed: | 80fpm | 40fpm |
| Lift Height: | 220’ | 110’ |
| A/C Power: | 110V, Single Phase, 12 amp | 110V, Single Phase, 12 amp |
| Horsepower: | 1.5HP | 1.5HP |
| Mounting Options: | Scaff-Trac, Trestle Monorail, I-Beam and Fixed I-Beam | Scaff-Trac, Trestle Monorail, I-Beam and Fixed I-Beam |
| Controller Type: | External Pendant | External Pendant |
| Dual Control: | Optional | Optional |
| Wireless Control: | Optional | Optional |
| Unit Weight: | 150lbs | 150lbs |
GEMININPLUS-10-110V-1-5

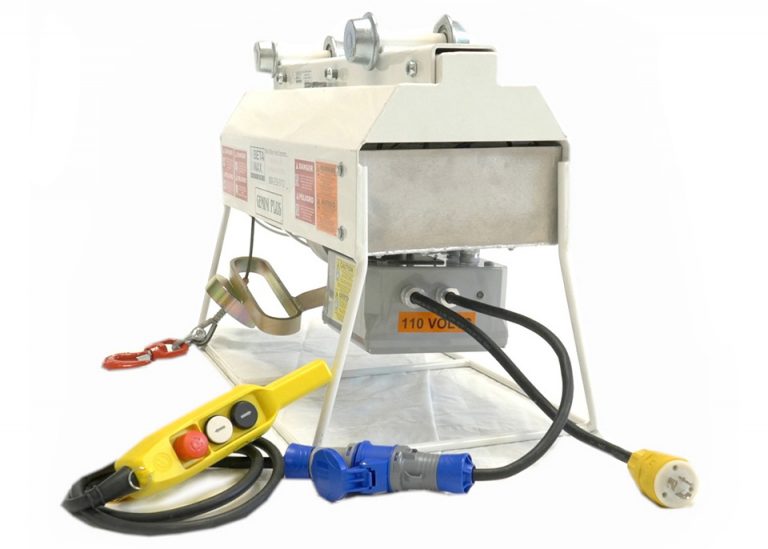

Gemini Plus
Single Line: 600lb | 110V | 220ft • Dual Line: 1200lb | 110V | 110ft
The Gemini Plus wire rope hoist is the largest 110V powered hoist in the Beta Max line. Perfect for medium duty projects, the hoist can be double roped to lift up to 1,200 lbs or single roped to reach heights of 220 ft. Use as a Scaffold, Masonry, Stucco, General Construction, Restoration or Roofing Hoist.
- Hoist of choice for Medium Duty projects of varied weights and heights.
- Long lasting performance with minimum maintenance required
- Optional Scaff-Trac Mounting System provides a standardized and complete lifting solution engineered for easy installation every time
- Flexible I-Beam Mounting Option works with and configures to each to each unique jobsite
Available Models
Specifications Sheet
Portable Hoist Manual
