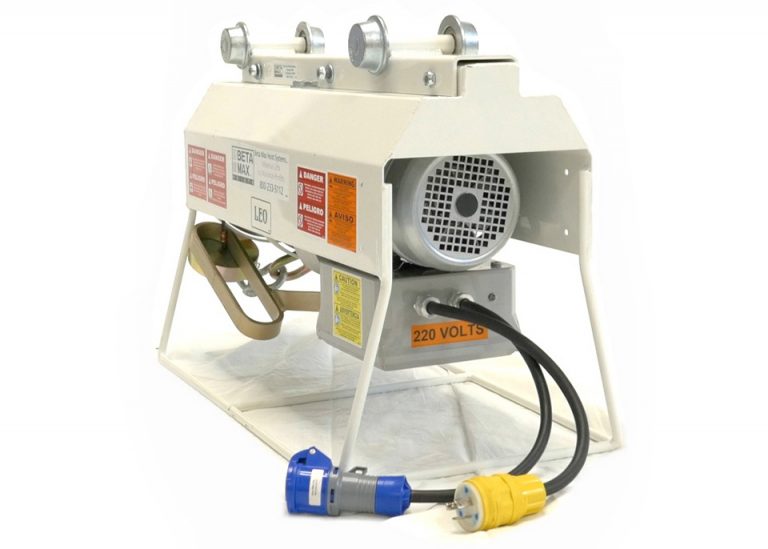

LEO

Single Line: 1000lb | 220V | 220ft • Dual Line: 2000lb | 220V | 110ft

The Leo wire rope hoist delivers 2,000 lbs of lifting capacity at an attractive price. Lift heavy stone and brick to work height at speeds of 80 fpm.



  • Hoist of choice for masonry and other Heavy Duty projects.
  • Long lasting performance with minimum maintenance required
  • Flexible I-Beam Mounting Option works with and configures to each to each unique jobsite
Available Models
Single Line: 1000lb | 220V | 220ft
Dual Line: 2000lb | 220V | 110ft
Single Line Dual Line
Lift Capacity: 1,000lbs 2,000lbs
Lift Speed: 80fpm 40fpm
Lift Height: 220’ 110’
A/C Power: 220V, Single Phase 220V, Single Phase
Horsepower: 2HP 2HP
Mounting Options: Scaff-Trac, Trestle Monorail, I-Beam Trolley and Fixed I-Beam Scaff-Trac, Trestle Monorail, I-Beam Trolley and Fixed I-Beam
Controller Type:  External Pendant  External Pendant
Dual Control: Optional Optional
Wireless Control: Optional  Optional
Unit Weight:  165lbs  165lbs
